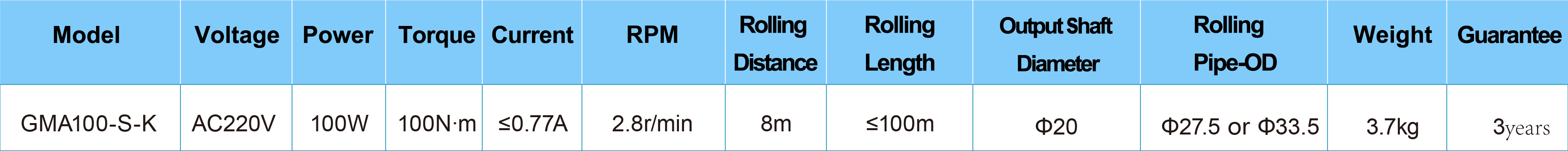

1. Product list

GMA100-S-K

2. Product Feature

(1)The operation range of 8 meters can fulfill various working requirement. ( 8m operation range when rolling pipe is φ27mm)

(2) Overload-proof: when the load is 1.5 times the rated torque, the overload protection device will activate to shut down the motor. The motor can restart after 5- 6 minutes, but make sure removal of overload cause. The design is to prevent the motor from burning down under overload.

(3) Economic and Easy to stall: directly connecting to AC 220V power saves the cost of power adapter, cables and installation workforce.

(4) Large Torque: customized motors, high efficiency, high overload capacity compact and durable, 3 years warranty.

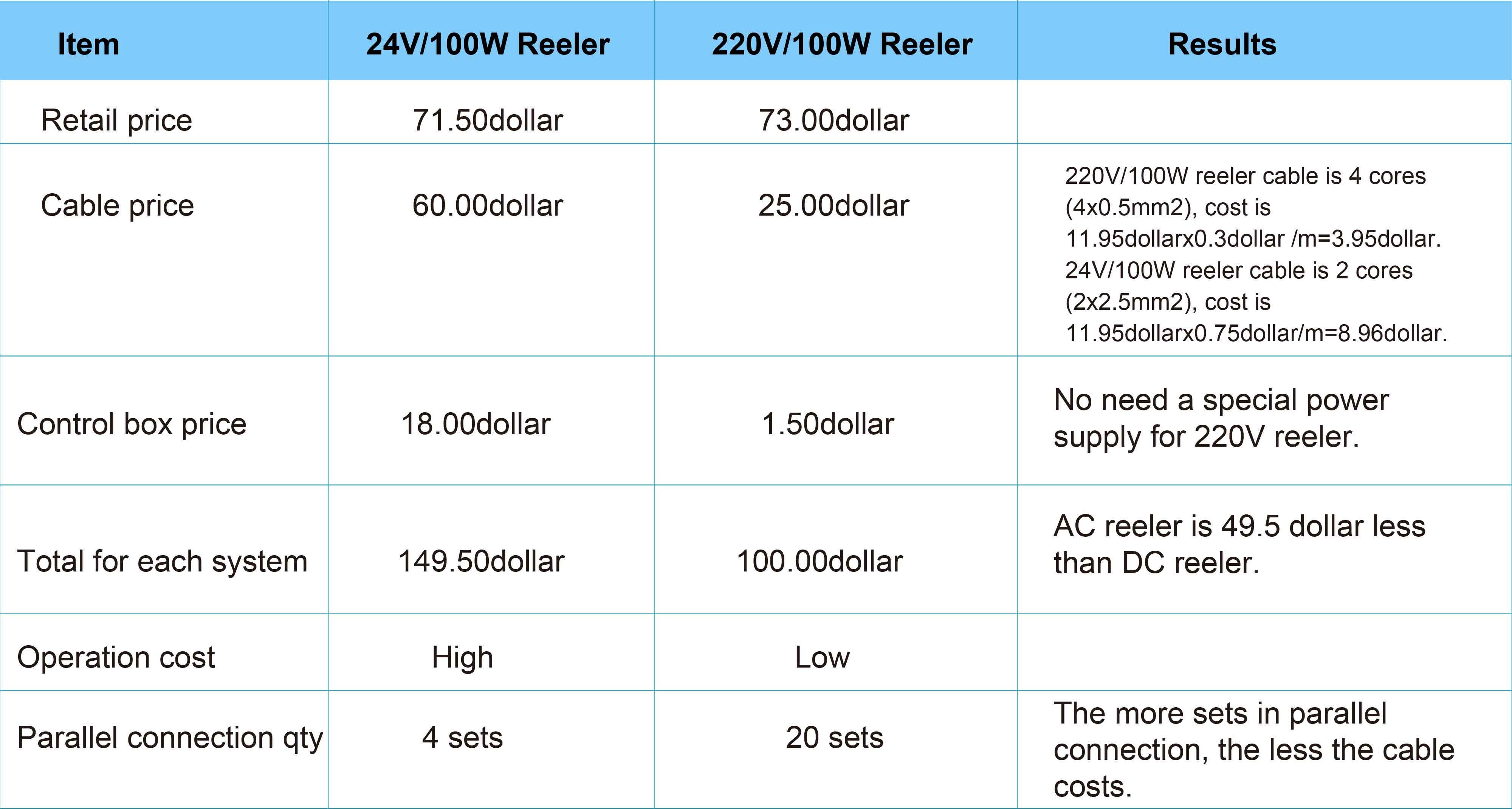

3. DC 24V and AC 220V Reeler Solution Cost Comparison

Calculation based on a project that requires 100 pcs 100W reelers and 80m cables:

  Conclusion: AC 220V Reeler Solution cost is 20%-40% less than DC 24V Reeler Solution.

4. Development History

 In 2003, KINGZO^®  Electrical Film Reeler was developed by Beijing Fenglong;

 Till 2006, KINGZO^® Reelers have been exported to more than 20 countries, mainly Japan, USA;

 In 2008,a total of 10000 sets were sold to Japan market;

 In 2013, an innovative KINGZO^® AC 220V series was developed;

 In 2017, KINGZO^® Reelers sold out 80000 sets, annual production capacity reached 1500000 sets.

5. Why Kingzo Film Reelers ?

(1) Quality: KINGZO^® Electrical Film Reeler 100% inspected before shipment, and 10 years traceable archive file kept for each reeler.

(2) R&D: FLC keep the investment to improve and develop new models. FLC R&D team have excellent engineers from both domestic and Japan.

(3) Recognition by Market: through years of efforts, our products have been widely recognized by clients all over the world, including leading greenhouse constructors and growers, like Netafim, Richel, Haygrove, etc.
